| d | 50 |
| D | 90 |
| T | 32 |
| B | 32 |
| C | 24.5 |
| R徑向 | 1.5 |
| R軸向 | 1.5 |
| r徑向 | 1.5 |
| r軸向 | 1.5 |
| Cr | 119 |
| Cor | 160 |
| 脂潤滑 | 3800 |
| 油潤滑 | 5000 |

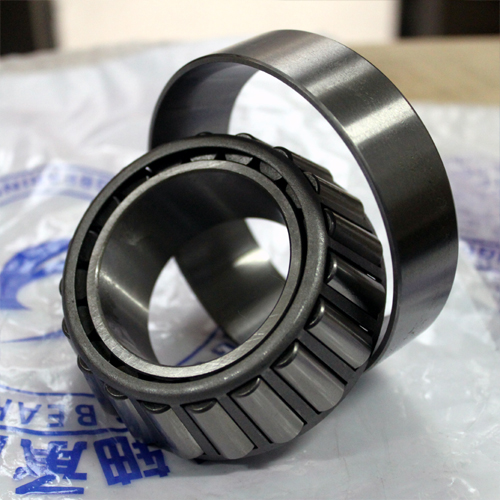

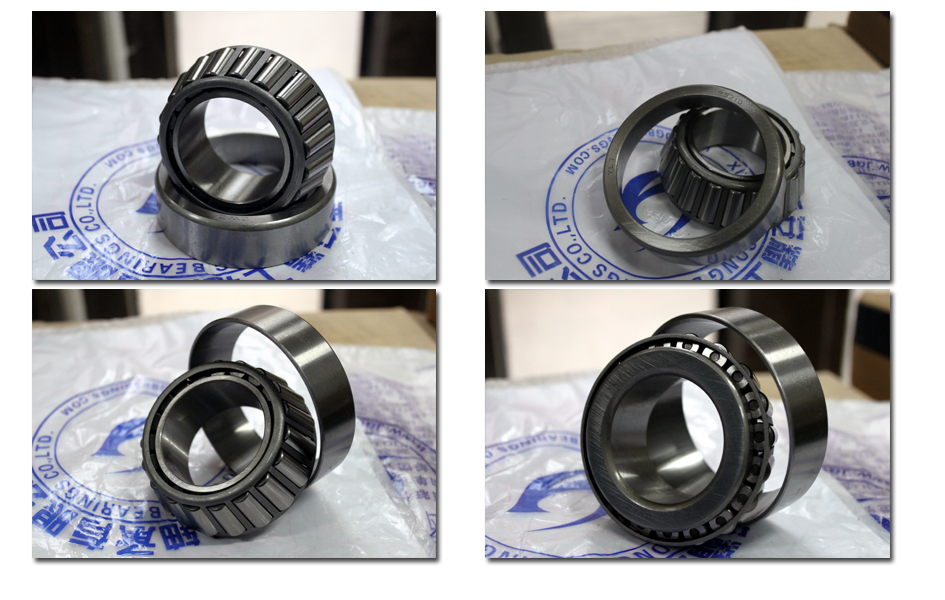

| 軸承代號 | 33210 |
| 重量 Kg |
1.17 |
| da(max) | 57 |
| db(min) | 58 |
| Da(min) | 75 |
| Da(max) | 83 |
| Db(min) | 88 |
| Ca(min) | 3 |
| Cb(min) | 7.5 |
| e | 0.41 |
| Y | 1.5 |
| Yo | 0.8 |
| a | 23 |
